Rebuildable Joints
Rebuildable Joints

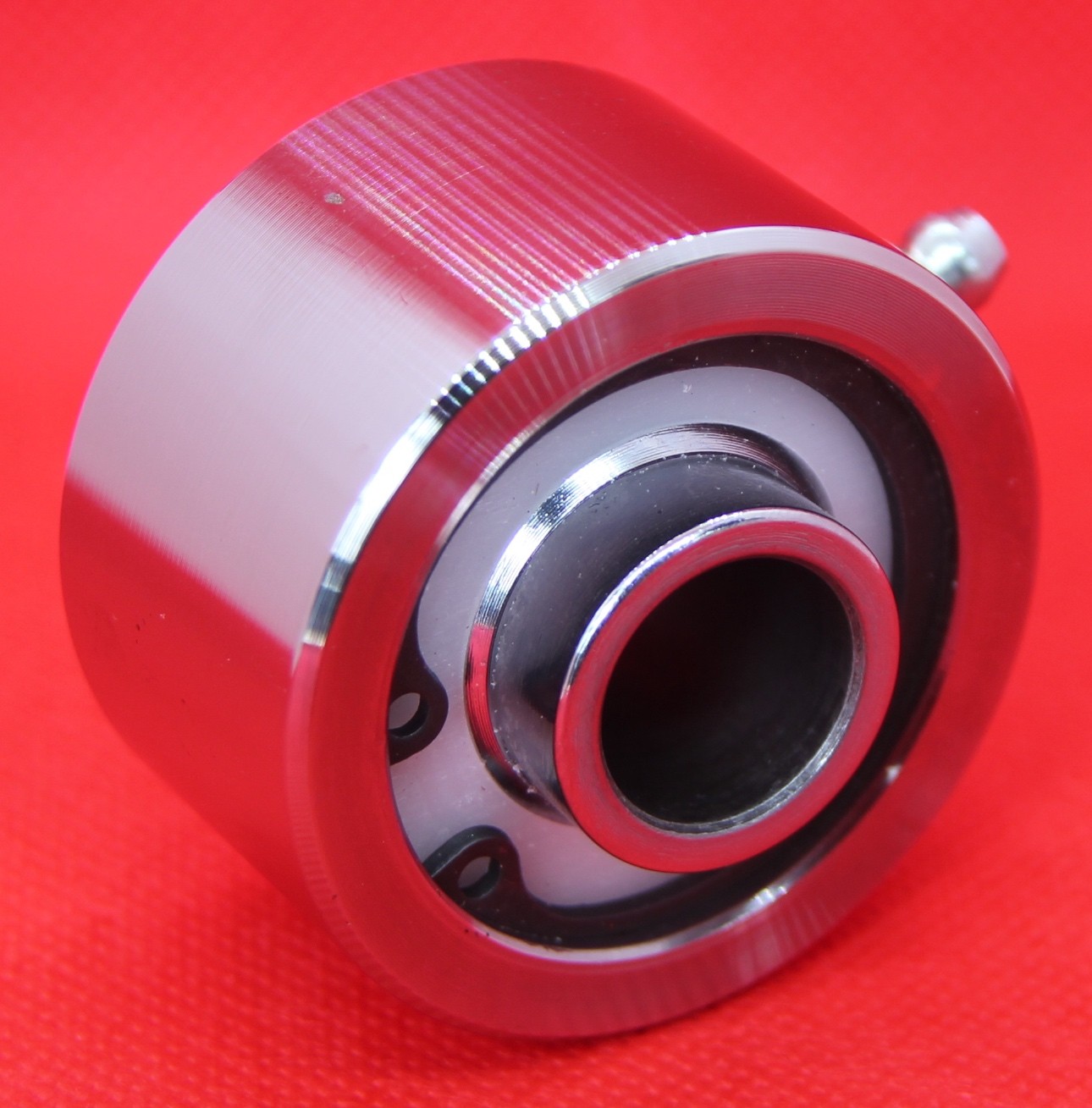

Yes, we are the sole producer of the O'Halloran Rebuildable Joint.
Known by many as the "O'Halloran Joint" due to extensive research and development undertaken by John O'Halloran over many years. These joints are rebuildable, allowing you to remove any dirt and when the time comes, replace the inserts. Featuring a grease nipple and a housing made from Carbon Hollow Bar. The ball is manufactured from bearing material to achieve a low friction high sheen finish.
Part # | Housing Style | Housing Width | Housing OD | Ball Eye Hole | Misalignmnet Angle +/- |
C/M10 24-50 | Circlipped | 24mm | 50mm | 5/8 | 15 |
C/M10 28-50 | Circlipped | 28mm | 50mm | 5/8 | 10 |
C/S10 24-56 | Circlipped | 24mm | 56mm | 5/8 | 25 |
C/S10 28-56 | Circlipped | 28mm | 56mm | 5/8 | 22 |
C/S10 32-56 | Circlipped | 32mm | 56mm | 5/8 | 15 |
C/S10 28-60 | Circlipped | 28mm | 60mm | 5/8 | 22 |
C/S12 28-56 | Circlipped | 28mm | 56mm | 3/4 | 17 |
C/S12 32-56 | Circlipped | 32mm | 56mm | 3/4 | 10 |
C/S12 28-60 | Circlipped | 28mm | 60mm | 3/4 | 17 |
